Loudspeakers Surround

Cinema Pro 6

The surround loudspeaker. Sides, rears and heights.

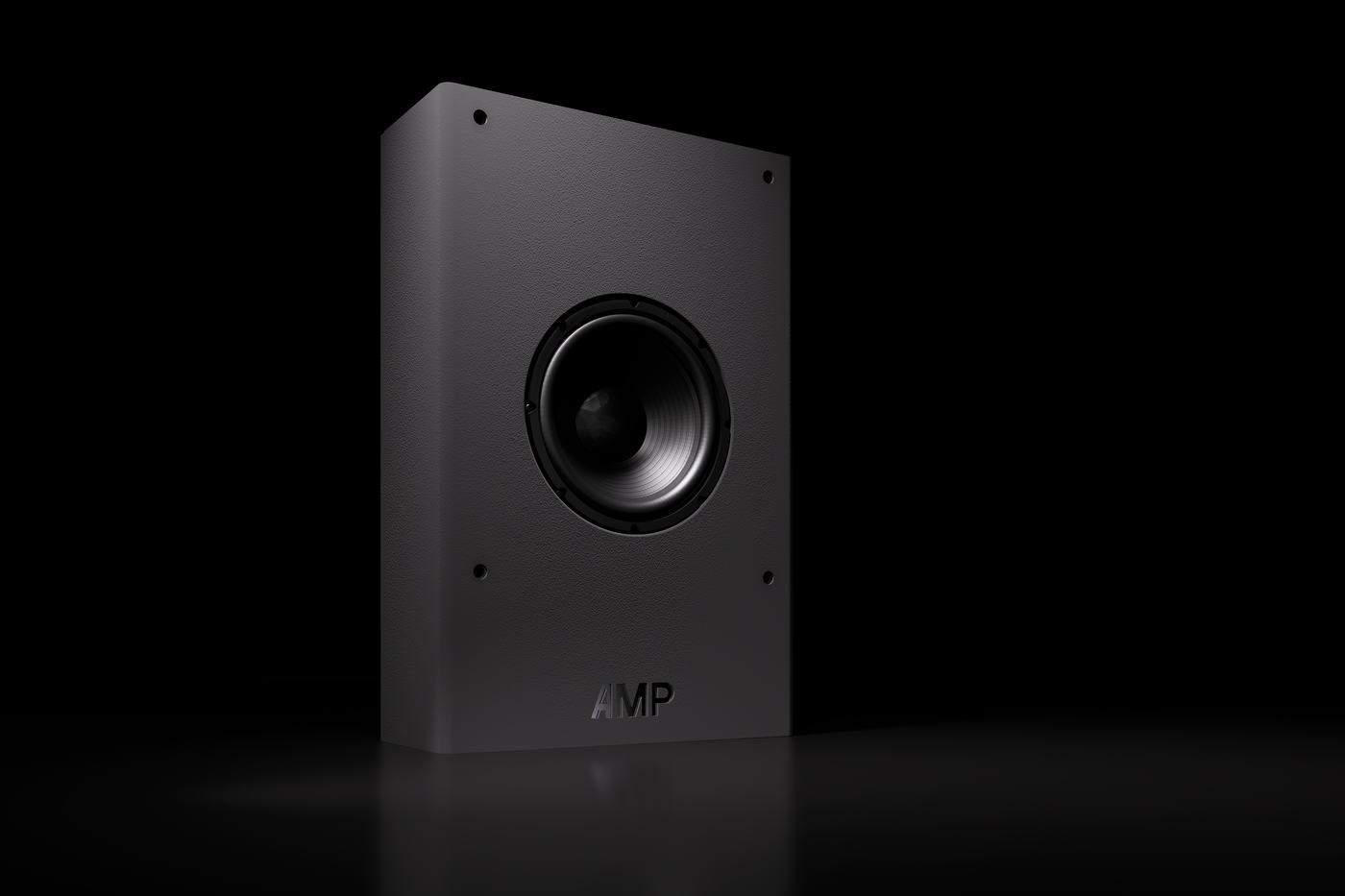

Cinema Pro 6 in black, a shallow cabinet with a single driver
Frequency response
70Hz – 18kHz
Sensitivity
91dB
Power handling, AES
120W
Impedance
8Ω

01 · One voice

The rest of the room, in the same voice.

When a helicopter crosses from the screen to the back of the room, it should sound like the same helicopter all the way. The Cinema Pro 6 is voiced alongside the Cinema Pro 8, so sound moves from the screen to the walls and ceiling without changing character.

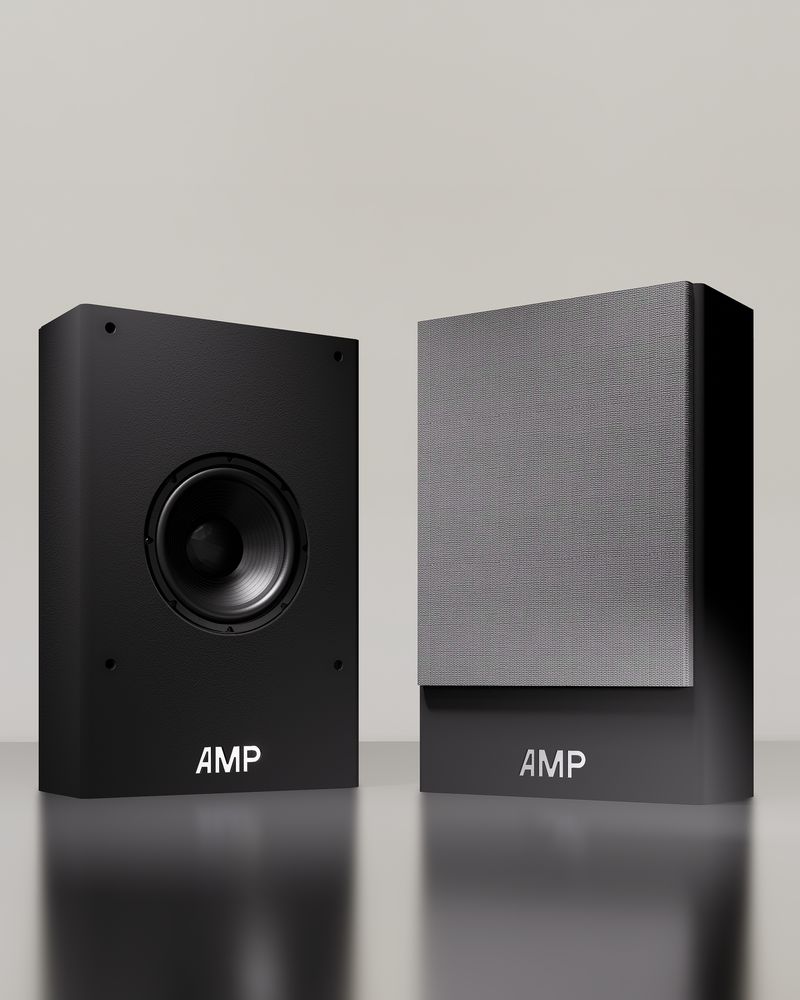

Two Cinema Pro 6 loudspeakers on a light background, one with its grille fitted

02 · Immersive layouts

Sides, rears and heights.

One model covers every non-screen position, from a 5.1 room to a full immersive layout. RP22 calls for at least 11 discrete loudspeakers at Level 2 and 15 at Level 3.

03 · Set-up

A defined crossover.

Set the processor’s high-pass filter to 100 Hz, at 18 dB per octave or steeper. Everything below goes to the Cinema Pro 18S subwoofers.

04 · Installation

Walls and ceilings.

Designed for flush mounting in a baffle wall, like the Cinema Pro 8. VESA 100 × 100 mounting points also take off-the-shelf wall and ceiling brackets, so each speaker can be aimed at the seats.

Specifications

Cinema Pro 6

Role
Surround: sides, rears, heights
Frequency response
70 Hz – 18 kHz
Sensitivity
91 dB
Power handling
120 W RMS (AES)
240 W programme
Nominal impedance
8 Ω
Recommended high-pass
100 Hz, 18 dB/octave or steeper
Installation
Baffle wall, flush-mounted
VESA 100 × 100
Finish
Black

Maximum output and full measurement conditions will be published here, so the level a room can reach can be calculated against CEDIA/CTA‑RP22.
